Introduction to Flexible Disc Coupling; A Smart Solution for Power Transmission

In the modern world of industrial equipment, the right choice of coupling plays a key role in improving the performance of mechanical systems. One of the most widely used and advanced options in this field is the flexible disc coupling . But what is a flexible disc coupling and what are its features? Join us as we explore this important and practical tool.

What type of tool is a flexible disc coupling?

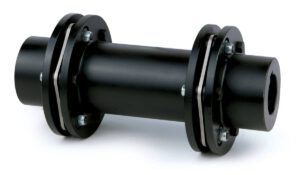

A flexible disc coupling is a mechanical device used to transmit torque between two parallel shafts or those with slight misalignment. This type of coupling is designed using discs made of spring steel or composite that are resistant to vibration, heat, and load fluctuations.

Flexible disc coupling features

Some important features of disc couplings include:

• High flexibility in compensating for shaft misalignment

• No need for periodic lubrication

• Long life and corrosion resistance

• Lightweight, compact and suitable for limited spaces

• Precise torque transmission without backlash

Disc coupling applications in industry

Disc couplings are used in many industrial machinery and equipment, including:

• CNC machines and linear modules

• Automation systems equipped with HQM servo motors and HQM stepper motors

• Equipment with HQM solar gearbox or spur gear gearbox

• Power transmission machinery with HQM and HIWIN ball screws

• Precision applications with industrial bearings , HIWIN or HQM rails and carriages

Advantages of flexible disc couplings over other types

This type of coupling has many advantages over gear or rubber couplings. The most important of these include:

• No slack or noise at high speeds

• High torque capacity with minimal space requirement

• Resistance to high temperatures and environmental pollution

• Reduced need for maintenance

Features of devices that use flexible disc couplings

Devices that use disc couplings in their structure usually have the following:

• High accuracy in movement and positioning

• Using HIWIN or HQM ball screws

• Advanced controllers with high coordination capabilities

• Using HQM inverter systems or ALPHA inverters

• Capability of non-stop operation in production lines

Standard gear mating in flexible disc coupling

In this type of coupling, the connection between standard gears and discs is designed to transmit torque uniformly and without backlash. This precise connection reduces wear, increases component life, and increases equipment performance accuracy.

Frequently Asked Questions about Flexible Disc Couplings

1. Is a disc coupling suitable for high speeds?
Yes, due to its backlash-free design, this type of coupling is very suitable for high speeds.

2. Is it possible to use this coupling in humid environments?
Yes, its stainless and durable material allows it to perform well in humid industrial environments.

3. Does this coupling require lubrication?
No, unlike gear couplings, it does not require lubrication.
